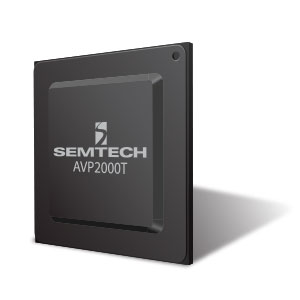

Semtech AVP2000T
Bringing the disruptive power of Ethernet to traditional AV signal distribution, the BlueRiver AVP ASIC chipset delivers a single programmable system on chip (SoC), which can be used to replace traditional AV/KVM extenders, matrix switchers, video wall controllers, and windowing processors, with a simple network of transmitters, receivers and off the shelf Ethernet switches.
The BlueRiver AVP2000T includes the BlueRiver AV Processor for in-line pixel processing with simultaneous video transmit and receive functionality.
- 4K60 4:4:4 with uncompressed image quality
- Multi-channel audio, Gigabit Ethernet, RS-232, USB and IR
- Zero latency extension and switching
- Independent switching for all signal types
- Support for fiber and category cabling
- Power over Ethernet (PoE) compatible
- Scaling, compositing and image splitting
- Support for bidirectional video
All BlueRiver AVP series chipsets are not only interoperable with each other, but also interoperable with the installed base of SDVoE products. Sharing a common SDVoE API which intelligently enables features based on endpoint capability, the AVP2000 or AVP2000T can extend the capability of the AVP1000. For example, an AVP1000 transmitter, which does not support scaling, may send its signal to an AVP2000 receiver, which can display the AVP1000 video signal with scaling, seamless switching or as a video wall.
From device discovery to runtime control, the SDVoE API makes it simple to rapidly develop and deploy products of any complexity by providing the interface for easy setup, control and monitoring of the device capabilities such as routing, scaling, video wall processing, image compositing, down-mixing and much more. The API provides interoperability between SDVoE products from a broad range of manufacturers.
With a dedicated 1GbE interface combined with an integrated 10G to 1G switch, each BlueRiver AVP enabled endpoint can provide a 1G data port, enabling true data networking within the AV network. This capability eliminates the need for redundant equipment and cabling for locations where the AV and data network overlap.
Overview
Features
- Enables switching and extension of audio, video and control signals over standard Ethernet networks
- Compatible with full range of formats, including 4K60RGB/4:4:4, HDR, 3G and broadcast-friendly 4K60 10-bit 4:2:2
- HDMI audio embedding, de-embedding and breakaway
- Independent switching with zero latency for all signal types
- Broadcast quality scaler, programmable to scale up or down any resolutions between VGA and 4K
- Independent video scaling on both transmit and receive paths
- Synchronized video wall processing with bezel correction
- Compositing engine for combining multiple sources into a single display with user-defined layouts for multi-view, tiling and picture-in-picture applications
- Audio down-mixing engine from multi-channel PCM audio to stereo
- Color space conversion and frame rate conversion
- Supports 10G Ethernet over category cabling and optical fiber
- Single device for transmitter (Tx) or receiver (Rx) products
Applications
- AV/KVM extension
- AV/KVM matrix switching
- AV/KVM over IP
- Video Wall processing
- Windowing and tiling
- All of the above simultaneously on a single platform
Packaging
- 576-ball BGA 25mm x 25mm (1.0mm ball pitch)
Order Codes
- AVP2000T-IBE3: Lead-Free, RoHS Compliant, Tray-40 Pieces
Diagrams and Specs
Key Specifications
Key Specifications
Video Interfaces
- HDMI 2.0 supporting all resolutions up to 594MHz
- 4K60 RGB and 4:4:4 8-bit
- 4K60 4:2:2 10-bit for broadcast and medical applications
- 4K60 4:2:0 10-bit and 12-bit HDR
Audio Interfaces
- Integrated HDMI audio with 2-channel I2S in or out with 8-channel I2S in and out
- Supporting all HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio
- HDMI audio embedding, de-embedding & breakaway
- Each audio type independently routable
- Seamless Dante™ audio integration using available I2S and RGMII interfaces
Control Interfaces
- Quad RS-232, infrared I/O, Gigabit Ethernet, USB-HID and GPIO
- USB 2.0 full device support at 480Mbps with third-party chipset
- Software insertion of all control signals via API
Transmission Performance
- End-to-end latency under 100 microseconds
- Video is uncompressed, except 4K60 8-bit 4:4:4 and 10-bit 4:2:2
- Ultra-lightweight compression with 1.3-to-1 compression ratio and 100% artefact-free
Transmission Interface
- 10 Gigabit Ethernet via XFI, IEEE 802.3, and 2.5/5 Gigabit interface via IEEE 802.3bz
- Compatible with 10GBaseT or NBaseT copper PHY or SFP+ fiber modules
- Power over Ethernet (PoE) support with compatible PHY devices
Transmission Distance
- Up to 100 meters via 10GBaseT or NBaseT on category cable
- Up to 300/550 meters with multi-mode OM3/OM4 fiber
- Up to 30km with single-mode fiber
BlueRiver AV Processor
- Broadcast quality upscaling and downscaling (4K ↔ VGA)
- Color space, chroma sampling, and frame rate conversion
- Multi-view compositing up to 16x16 tiles
- Video wall with synchronized output and bezel correction up to 64 displays
- Picture-in-picture, picture-and-picture
- Multi-channel PCM audio down-mixing
General
- Power: 2.6W Typical
- Package: 576-BGA (25mm x 25mm)

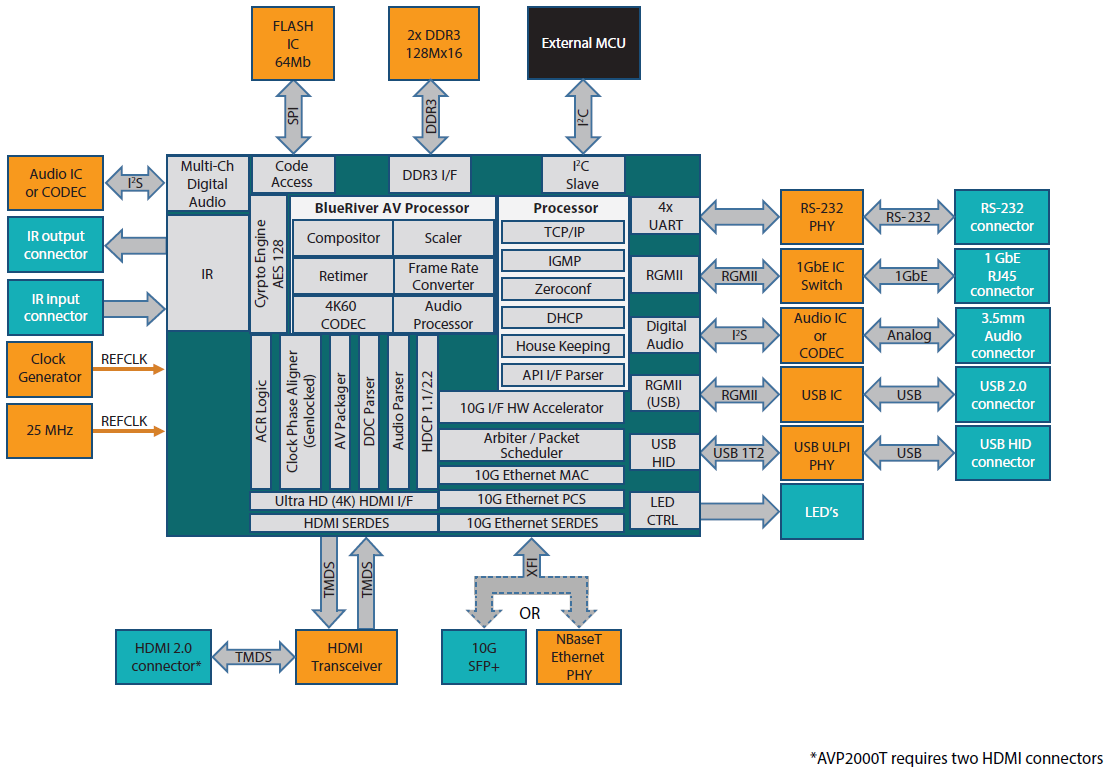

Block Diagram
Click diagram to enlarge
