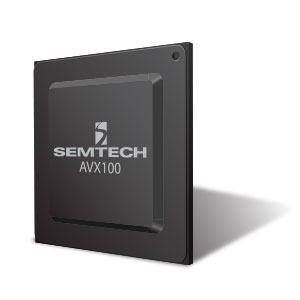

Semtech AVX100
The AVX extender ASIC series pushes the envelope on multimedia connectivity between AV equipment and remote displays by simultaneously transmitting uncompressed quality Ultra HD (4K) video, multi-channel audio, Gigabit Ethernet, 480Mb/s USB2.0 and other control signals on a single category cable.
The AVX100 AV extender provides the most cost effective solution for point to point AV extension over copper cables, with less than 0.1 milliseconds latency at maximum cable reach.
The new AVX extender chipset series also includes the AVX200T, which is fully interoperable with the AVX100. Products using these chipsets can be integrated into AV transmitters, AV receivers, AV matrix switches, presentation switchers and other AV equipment to address a variety of market applications, and are an ideal replacement for HDBaseT.
Overview
Features
- Point to point extension of audio, video, Gigabit Ethernet and control signals between AV equipment (e.g. sources, displays, AV Matrix switches)
- Full range of formats including 4K60 RGB/4:4:4, HDR, 3D and broadcast-friendly 4K60 10-bit 4:2:2
- HDMI audio embedding, de-embedding and breakaway
- Supports 10G Ethernet over category cabling
- Power over Ethernet (PoE) support
Applications
- AV/KVM extension
- AV/KVM matrix switching
- Video Wall processing
Packaging
- 576-ball BGA 25mm x 25mm (1.0mm ball pitch)
Order Codes
- AVX100-IBE3: Lead-Free, RoHS Compliant, Tray-40 Pieces
Diagrams and Specs
Key Specifications
Key Specifications
Video Interfaces
- HDMI 2.0 supporting all resolutions up to 594MHz
- 4K60 RGB and 4:4:4 8-bit
- 4K60 4:2:2 10-bit for broadcast and medical applications
- 4K60 4:2:0 10-bit and 12-bit HDR
Audio Interfaces
- Integrated HDMI audio with 2-channel I2S in or out with 8-channel I2S in and out
- Supporting all HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio
- HDMI audio embedding, de-embedding & breakaway
Control Interfaces
- Quad RS-232, infrared I/O, Gigabit Ethernet, USB-HID and GPIO
- USB 2.0 full device support at 480Mbps with third-party chipset
Transmission Performance
- End-to-end latency under 100 microseconds
- Video is uncompressed, except 4K60 8-bit 4:4:4 and 10-bit 4:2:2
- Ultra-lightweight compression with 1.3-to-1 compression ratio and 100% artefact-free
Transmission Interface
- 10 Gigabit Ethernet via XFI, IEEE 802.3, and 2.5/5 Gigabit interface via IEEE 802.3bz
- Compatible with 10GBaseT or NBaseT copper PHY
- Power over Ethernet (PoE) support with compatible PHY devices
Transmission Distance
- Up to 100 meters via 10GBaseT or NBaseT on category cable
General
- Power: 2.6W Typical
- Package: 576-BGA (25mm x 25mm)
Block Diagram
Click diagram to enlarge
