Overview
The HS0520P is an integrated 2A HotSwitch® with reverse current blocking. It operates from a 1.6V to 5.5V input supply and includes an automatic output discharge. The device provides low 53mΩ ON resistance (RON) in an ultrasmall package. The reverse blocking feature prevents current from flowing in reverse direction from the output through the device to the input supply rail. Whenever VOUT to VIN voltage exceeds the reverse blocking threshold, reverse blocking is activated regardless of the IC enable state (either ON or OFF). The HS0520P is offered in a 0.70 x 0.70 x 0.25 mm 4-Lead MLGA package enabling very small board area implementations.
Features
- Integrated Load Switch
- Input Voltage Range – 1.6V to 5.5V
- 2A Continuous Output Current
- Low RON – 53mΩ
- Reverse Current Blocking
- Automatic Output Discharge
- Low Quiescent Current – 0.8µA
- Low Shutdown Current – 0.3µA
- Internal Soft Start
- Hardened ESD Protection 5kV
Packaging

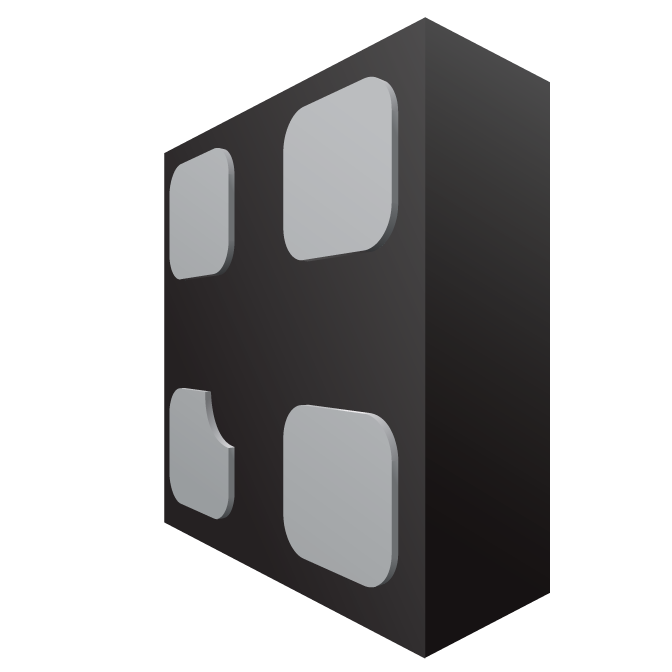

- MLGA 0.70 x 0.70 x 0.25 mm 4-Lead
Order Codes
- HS0520P.N
10,000 pcs (Qty per Reel)
7 inches (Reel Size)
PB Free/ROHS
Learn More →
| Documents | Release Date | Type |  |
|---|---|---|---|
| HS0520P Datasheet | 2026-05-28 | | |
Applications
- Wearable Electronics
- Notebook PCs, Ultrabooks
- Battery Powered Equipment
- Portable Industrial Equipment
- Point of Sales Terminal
- Other Portable Devices
