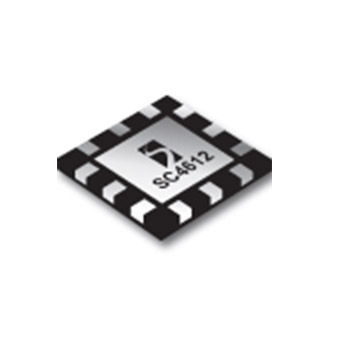

Semtech SC4612
Not Recommended for New Designs. Consult Factory
Obsolete - this device is no longer available. Datasheet is for information purposes only.
Overview
Features
- Wide input voltage range, up to 28V
- Internally regulated DRV
- Output voltage as low as 0.5V
- 1.7A gate drive capability
- Asynchronous start up mode
- Low side RDS-ON sensing with hiccup mode current limit
- Programmable current limit
- Programmable frequency up to 1.2 MHz
- Available in MLPD-12 and SOIC-14 lead free packages. This product is fully WEEE and RoHS compliant
Applications
- Distributed power architectures
- Telecommunication equipment
- Servers/work stations
- Mixed signal applications
- Base station power management
- Point of use low voltage high current applications
Packaging
- Distributed power architectures
- Telecommunication equipment
- Servers/work stations
- Mixed signal applications
- Base station power management
- Point of use low voltage high current applications
Packaging
MLPD-12, SOIC-14
Order Codes
- SC4612MLTRT: Lead-free, RoHS and WEEE compliant, 2500 pcs. Tape & Reel (MLPD-12)
- SC4612STRT: Lead-free, RoHS and WEEE compliant, 2500 pcs. Tape & Reel (SOIC-14)
