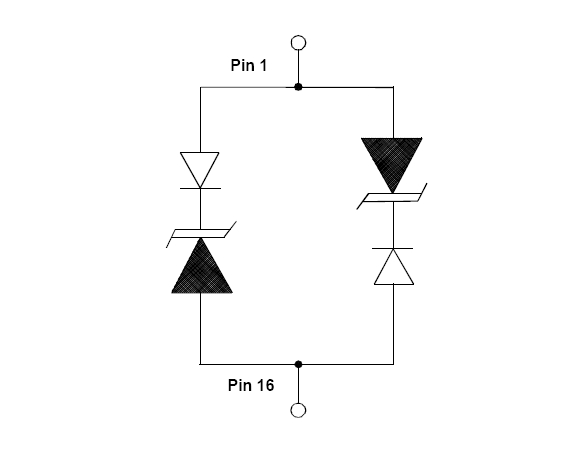

The LCDAxxC-8 has been specifically designed to protect sensitive components which are connected to data and transmission lines from over voltages caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
- 12 V 15 V operating voltage

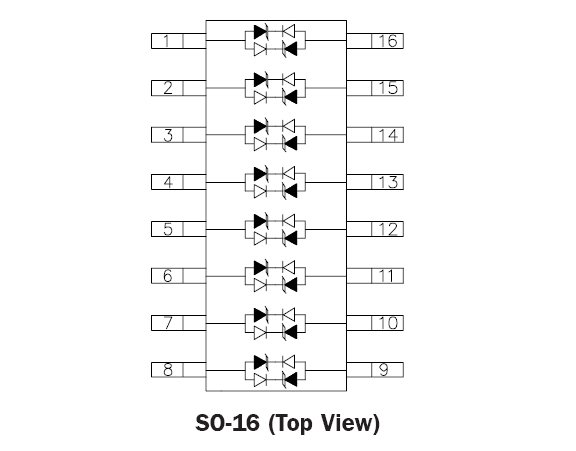

- Protects eight I/O lines
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 0.5 kV, 12 A (8/20 µs)
- Low capacitance for high-speed interfaces
- High surge capability
- Low clamping voltage
- Solid-state silicon-avalanche technology
- Lead-free, RoHS and WEEE compliant
- ADSL interfaces
- Serial/parallel interfaces
- High-speed data lines
- Portable electronics
- WAN/LAN equipment
- Wireless systems
- 500 pcs. Tape & Reel
