uClamp3306P

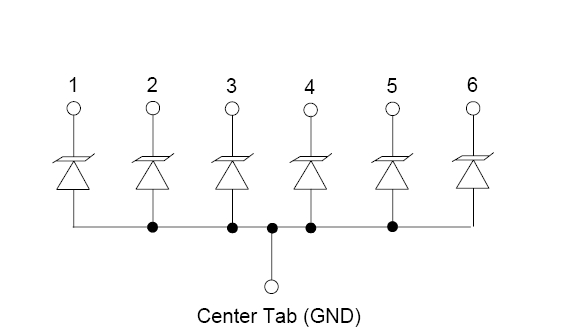

The μClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD, lightning, and other voltage-induced transient events. Each device will protect up to six lines operating at 3.3 volts.
Features
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- Small package for use in portable electronics
- Protects Six I/O
- Working voltage: 3.3V
- Low leakage current
- Low operating and clamping voltages
- Solid-state silicon-avalanche technology
- Lead-free, RoHS and WEEE compliant
- Cellular handsets and accessories
- Notebooks and handhelds
- MP3 Players
- Digital cameras
- Portable instrumentation
Applications
Packaging

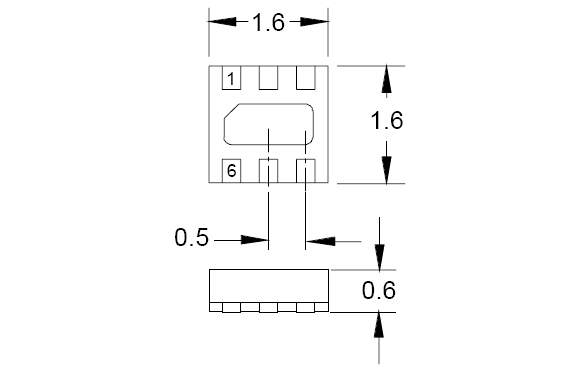

- SLP1616P6
- 3000 pcs. Tape & Reel
Order Codes
- uClamp3306P.TCT
Pb(Lead)-Free/RoHS-Green Info
