The μClamp series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and other portable electronics.
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- IEC 61000-4-5 (Lightning) 4A (8/20μs)

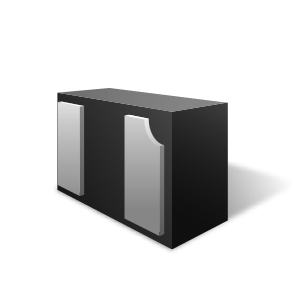

- Ultra-small package (1.0 x 0.6 x 0.4mm)
- Protects one data line
- Low clamping voltage
- Working voltage: 28V
- Low leakage current
- Solid-state silicon-avalanche technology
- Cellular Handsets & Accessories
- USB Voltage Bus
- Notebooks & Handhelds
- Portable Instrumentation
- Digital Cameras
- MP3 Players
- uClamp2801T.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
