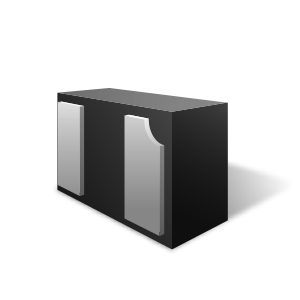

uClamp2501T
The μClamp series of Transient Voltage Suppressors (TVS) are designed to replace multilayer varistors (MLVs) in portable applications such as cell phones,notebook computers, and PDAs.
Features
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- Cable Discharge Event (CDE)

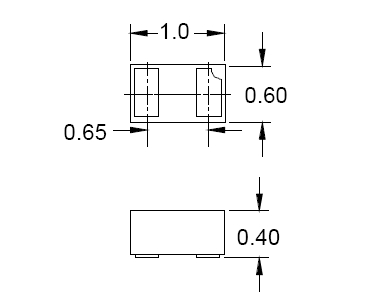

- Ultra-small package (1.0 x 0.6 x 0.4mm)
- Low leakage current: <10nA typical (VR=2.5V)
- Low Operating voltage: 2.5V
- Low capacitance
- Protects one data line
- Solid-state silicon-avalanche technology
Applications
Packaging
- SLP1006P2T
Order Codes
- uClamp2501T.TCT: Pb-free, Halogen free, RoHS and WEEE Compliant, 3000 pcs Tape and Reel
Pb(Lead)-Free/RoHS-Green Info
Explore a wealth of downloadable resources and datasheets to assist with prototyping and production.
Login or register for mySemtech to gain access to restricted product documentation and to add documents to your Watch List for update alerts
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
| Part # | Country | Qty | Buy | Distributor |
|---|
Resources
To see more videos Videos
