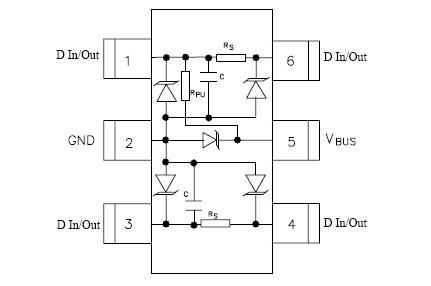

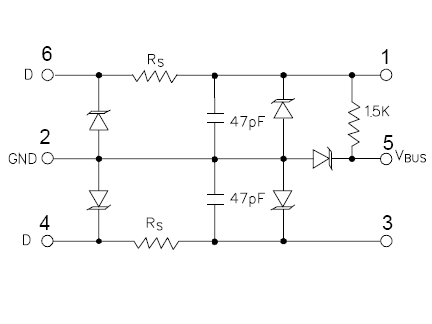

The STF203-15/22/33 is a combination EMI filter and line termination device with integrated TVS diodes for use on upstream USB ports. It is constructed using a proprietary technology that allows passive components and TVS diodes to be integrated in the same package. Each device will provide termination, filtering, and ESD protection for one upstream USB port.
- Bidirectional EMI/RFI filtering and line termination with integrated ESD protection
- ESD protection for USB power (VBUS) and data lines (D+ and D-) to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- Filtering and termination for one USB port
- Low TVS operating voltage: 5.25 V
- Low leakage current
- Small SC70-6L package
- Solid-state technology
- Lead-free, RoHS and WEEE compliant
- USB ports
- Cellular handsets
- Personal digital assistants (PDAs)
- Digital cameras
- PC peripherals
- MP3 players
- SC-70 6L
- 3000 pcs. Tape & Reel
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
