RClamp1502B
RailClamps are ultra low capacitance TVS arrays designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
Features
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Designed to replace polymer TVS
- Protects up to two I/O lines
- Ultra-Low capacitance (<1pF)
- No insertion loss to >3.0GHz
- Low profile (<1mm)
- Low leakage current and clamping voltage
- Low operating voltage: 15.0V
- Solid-state silicon-avalanche technology
- Lead-Free, RoHS and WEEE Compliant
- Automatic Test Equipment
- Firewire Ports
- GaAs Photodetector Protection
- HBT Power Amp Protection
- Infiniband Transceiver Protection
Applications

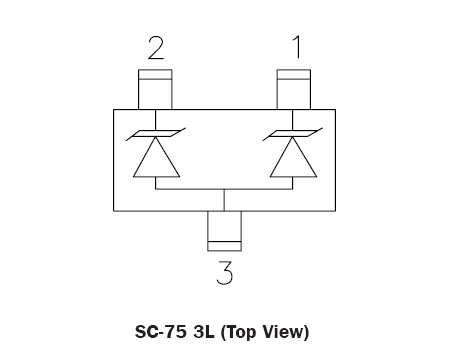

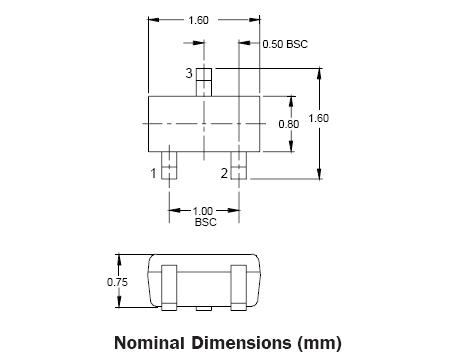

Packaging
- SC-75
- 3000 pcs.Tape & Reel
Order Codes
- RClamp1502B.TCT
Pb(Lead)-Free/RoHS-Green Info
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
