- ESD protection for high-speed data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns)

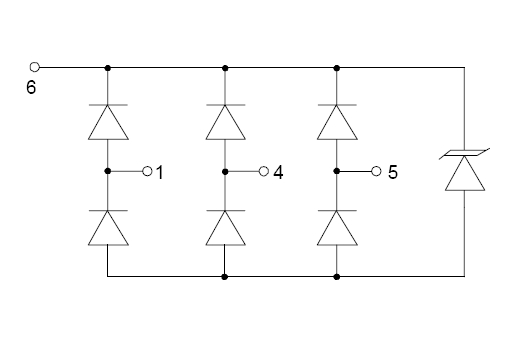

- Array of surge rated diodes with internal TVS Diode
- Small package saves board space

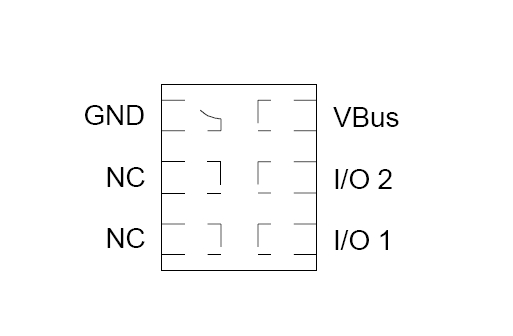

- Protects two I/O lines and a power line
- Low capacitance: 0.3pF typical
- Low clamping voltage
- Solid-state silicon-avalanche technology
- R/F Antenna Circuit
- MMC Port
- Serial ATA
- Video Port
- RClamp0502N.TCT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
