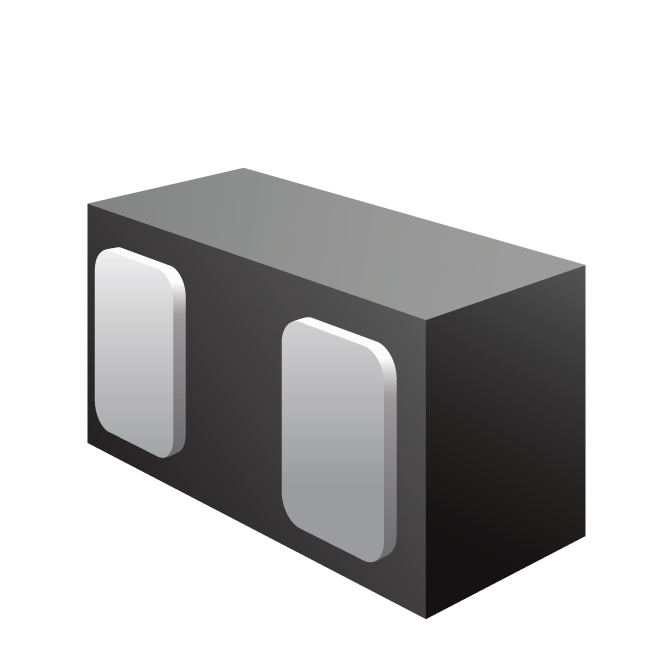

RClamp®01511ZA is an ultra-low capacitance FemtoClamp™ electrostatic discharge (ESD) protection device specifically designed to protect high-speed differential lines. It offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage and no device degradation.
- Transient protection to:
- IEC 61000-4-2 (ESD): ±10kV (contact)
- Working voltage: +1.5V
- Protects one high-speed data line
- Low ESD clamping voltage
- Low reverse leakage current:100nA
- Ultra-low capacitance: 0.2pF maximum
- Solid-state silicon-avalanche technology
- Thunderbolt 3
- USB 4
- USB3.2 Gen 1/Gen 2/Gen 2x2
- DisplayPort line protection
- DFN 0.60 x 0.30 x 0.25mm 2-Lead
