PClamp2011P
PClamp® TVS diodes are designed for use in harsh transient environments to protect sensitive electronics from damage or latch-up due to electrical overstress (EOS), lightning, cable discharge events (CDE), and electrostatic discharge (ESD). They feature large cross-sectional area junctions for conducting high transient currents. These devices offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
Features
- Transient Protection to:
- IEC 61000-4-2 (ESD) 30kV (air), 30kV (contact)
- IEC 61000-4-4 (EFT) 4kV (5/50ns)
- IEC 61000-4-5 (lightning) 180A & 120A (8/20μs)
- Protects one power line
- Low leakage current
- Solid-state silicon-avalanche technology
- Cellular handsets and accessories
- Industrial equipment
- Voltage supply lines
- Battery protection
- USB VBUS
Applications
Packaging

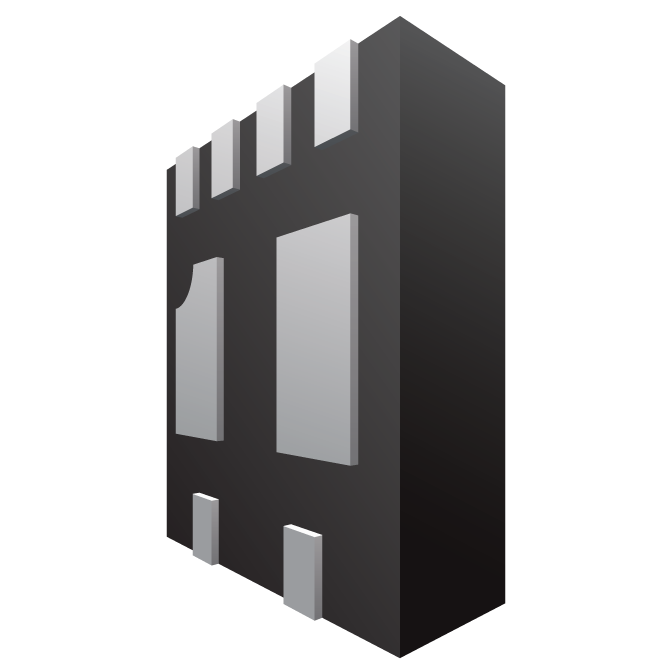

- DFN 2.0 x 1.8 x 0.57mm 6-Lead
Order Codes
- PClamp2011P.TGT: Pb-free, Halogen-free, RoHS/WEEE-compliant, 10,000 pcs.
Pb(Lead)-Free/RoHS-Green Info
