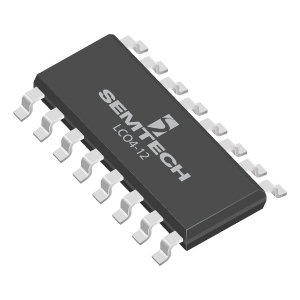

LC04-12
The LC04-12 has been specifically designed to protect sensitive components which are connected to highspeed telecommunications lines from over voltages caused by lightning, electrostatic discharge (ESD), cable discharge event (CDE), and electrical fast transients (EFT).
Features
- Transient protection for high-speed data lines to
- Bellcore GR 1089 IPP=100A (2/10μs)
- ITU K.20 IPP=100A (5/310μs)
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) IPP=100A (8/20μs)
- Protects two tip and ring line pairs
- Low capacitance for high-speed interfaces
- High surge capability
- Low clamping voltage
- Solid-state silicon avalanche technology
- ADSL/HDSL
- RS-232 and RS-423
- V.90
- WAN/LAN Equipment
- Cable Modems
Applications
Packaging
- JEDEC SO-16
Order Codes
- LC04-12.TB - SnPb , reel
- LC04-12.TBT - Pb free, reel
- LC04-12 - SnPb, tube
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
LC04-12
Part Description
DUAL LOW CAPACITANCE TVS ARRAY FOR TELECOM LINECARD APPLICATION TVS DIODE ARRAY, LOW CAP, 12V
# of leads
16
Package Type
SOIC
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
