RClamp3304NA
RailClamp® low capacitance TVS array is designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE Cable Discharge Events), and Lightning.
Features
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) 25kV (air), 15kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 25A (8/20μs)
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects up to four I/O lines
- Low capacitance (<5pF) for high-speed interfaces
- Low leakage current and clamping voltage
- Low operating voltage: 3.3V
- Solid-state silicon-avalanche technology
- 10/100/1000 Ethernet
- RJ-45 Connectors
- T1/E1 Secondary Protection
- T3/E3 Secondary Protection
- Analog Video
Applications
Packaging

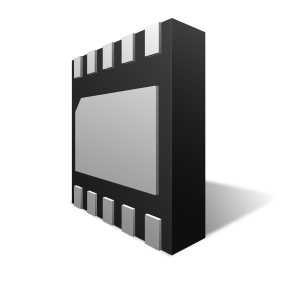

- SLP2626P10
Order Codes
- RClamp3304NATCT: Pb-Free, Halogen Free, RoHS/WEEE Compliant
