RClamp0542ZA
RClamp®0542ZA is an ultra low capacitance ESD protection device designed to protect two high-speed lines in an 0201 footprint. This revolutionary package design reduces board space requirements by more than 50% over existing single line solutions. RClamp0542ZA is a three pin device with identical low capacitance TVS diodes connected to each pin. Any two pins may be connected to high-speed lines, while the third pin is connected to ground. This gives the designer maximum flexibility in pcb routing. Each line has a maximum capacitance of only 0.30pF resulting in a typical corner frequency of 12GHz.
Features
- High ESD withstand voltage
- IEC 61000-4-2 (ESD) 17kV (air), 12kV (contact)
- Very small PCB area
- Protects two high-speed data lines
- Working voltage: 5V
- Low reverse leakage current: <1nA typ at VR=5V
- Low capacitance: 0.30pF maximum
- Dynamic resistance: 1.17 Ohms (Typ)
- Solid-state silicon-avalanche technology
- High-Speed Lines
- MIPI / MDDI
- USB 3.0
- HDMI
- MHL
- eDP
Applications
Packaging

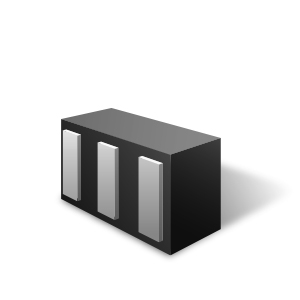

- SLP0603P3X3F - 0.62x0.32x0.25mm - Pb-Free, Halogen Free, RoHS/WEEE Compliant
Order Codes
- RClamp0542ZATFT - Tape and Reel
Pb(Lead)-Free/RoHS-Green Info
