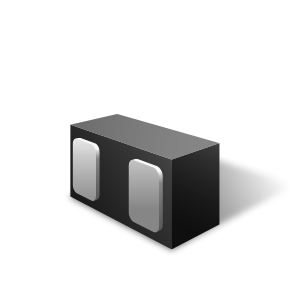

Semtech uClamp2411ZA
Ultra Small μClamp® 1-Line, 24V ESD Protection
μClamp® TVS diodes are designed to protect sensitive electronics from damage or latch-up due to ESD. It features large cross-sectional area junctions for conducting high transient currents. This device offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
Overview
Features
- Transient protection for data and power lines to
- IEC 61000-4-2 (ESD)
- IEC 61000-4-4 (EFT)
- Cable Discharge Event (CDE)
- Ultra-small package
- Protects one data or DC Power line
- Low clamping voltage
- Working voltage: 24V
- Low leakage current
- Solid-state silicon-avalanche technology
Applications
- Cellular Handsets & Accessories
- Notebook Computers
- Tablets
- Portable Instrumentation
- Chip-on-Glass Driver IC data line
- Peripherals
- 24V DC Power Rails
Packaging
• SLP0603P2X3F: 0.6 x 0.3 x 0.25mm
Order Codes
• µClamp2411ZATFT: Pb-Free, Halogen Free, RoHS/WEEE Compliant, 15,000 pcs.
