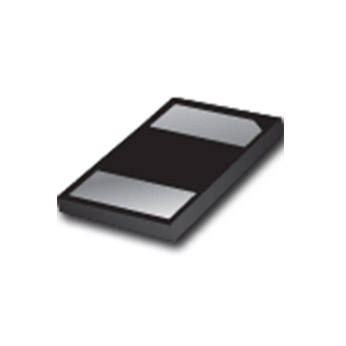

µClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. They feature large cross-sectional area junctions for conducting high transient currents. They offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- Cable Discharge Event (CDE)

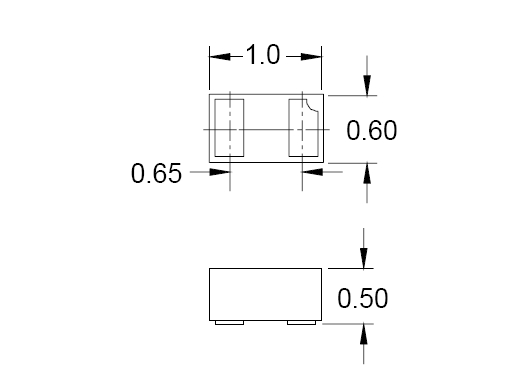

- Ultra-small package (1.0 x 0.6 x 0.5mm)

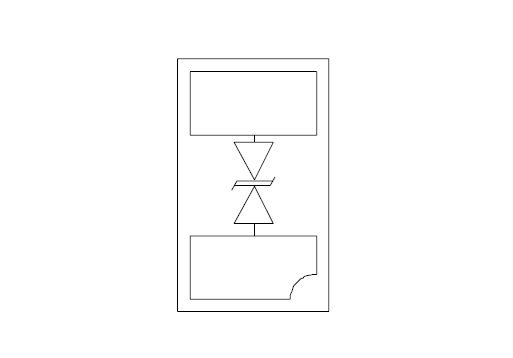

- Protects one I/O or power line
- Low clamping voltage
- Working voltage: ±12V
- Low leakage current
- Solid-state silicon-avalanche technology
- Cellular Handsets & Accessories
- Cordless Phones
- Personal Digital Assistants (PDAs)
- Notebooks & Handhelds
- Portable Instrumentation
- Digital Cameras
- MP3 Players
- uClamp1211P.TCT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
