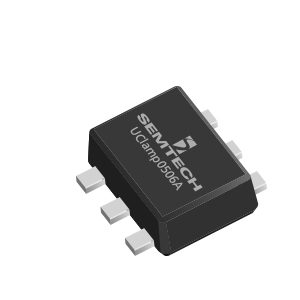

uClamp0506A
The μClampTM series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. They are designed for use in applications where board space is at a premium. Each device requires less than 2.9mm2 of PCB area and will protect up to five lines. They are bidirectional devices and may be used on lines where the signal polarities swing above and below ground.
Features
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)

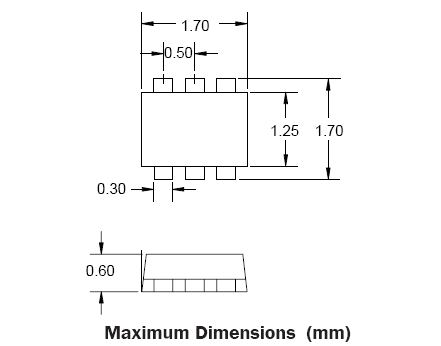

- Ultra-small SC-89 package (1.7 x 1.7 x 0.6mm) requires less than 2.9mm² of PCB area
- Working voltage: 5V
- Low leakage current
- Low operating and clamping voltages
- Solid-state silicon-avalanche technology
- Cellular Handsets and Accessories
- Cordless Phones
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
- MP3 Players
Applications
Packaging

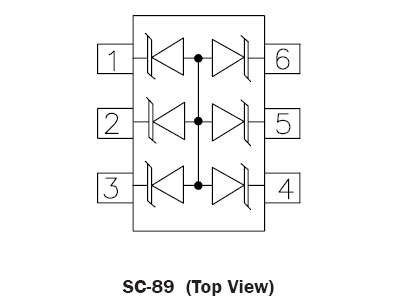

- SC-89
Order Codes
- uClamp0506A.TCT: Lead-Free, RoHS and WEEE Compliant, 3000 pcs. Tape & Reel
Pb(Lead)-Free/RoHS-Green Info
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
