Overview

SVS6514PAUB diodes are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD). They feature large cross-sectional area junctions for conducting high transient currents. They offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.

Packaging

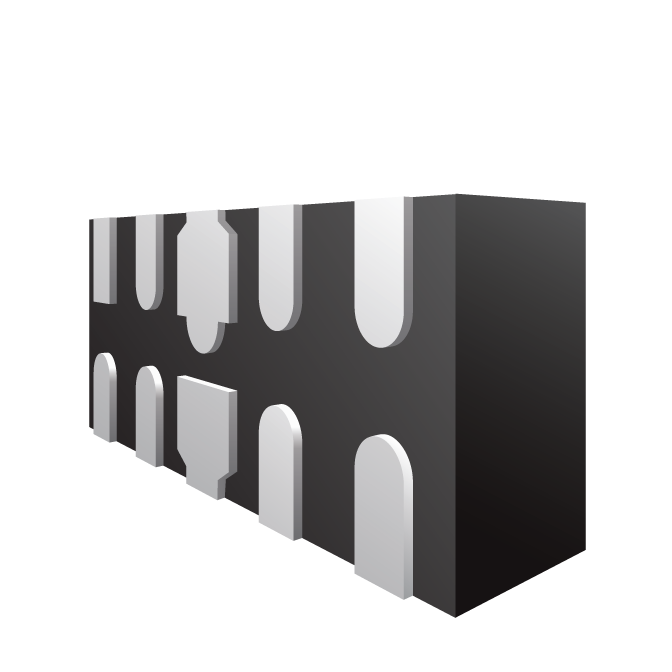

  • DFN 2.5 x 1.0 x 0.55mm 10-Lead Package

Order Codes

  • SVS6514PAUB.N

PB Free/ROHS

Learn More →

Features

  • High ESD withstand voltage
  • IEC 61000-4-2 (ESD): 8kV (Contact), 15kV (Air)
  • Protects upto four VBus lines
  • Flow-through package
  • Minimum breakdown Voltage: 65V
  • Low reverse current: <10nA typical (VR=60V)
  • Solid-state silicon-avalanche technology

Applications

  • Chip-On-Glass (COG) panels
  • VBus protection
  • LCD televisions
  • OLED panels
  • Set top box
