Not Recommended for New Designs.
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) 15kV (air), 8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)

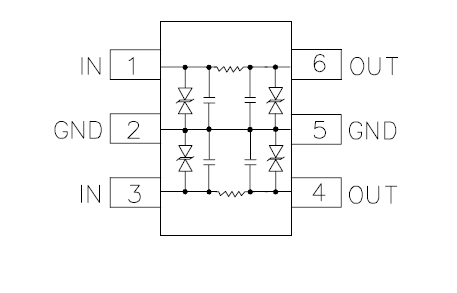

- Bidirectional EMI/RFI filter with integrated ESD protection
- Protects two I/O lines

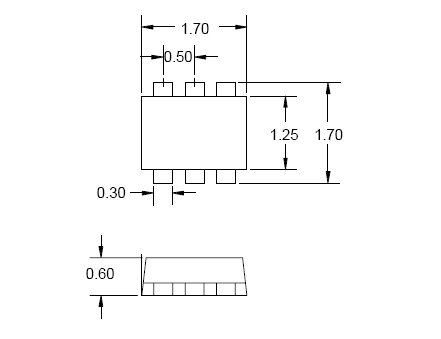

- Ultra-small SC-89 package (1.7 x 1.7 x 0.6mm) requires less than 2.9mm2 of PCB area
- Working voltage: 5V
- Low leakage current
- Low operating and clamping voltages
- Solid-state silicon-avalanche technology
- Cellular Handsets and Accessories
- Cordless Phones
- Personal Digital Assistants (PDA’s)
- Webpads & Handhelds
- Portable Instrumentation
- MP3 Players
- EClamp3202A.TCT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
