Not recommended for new designs.

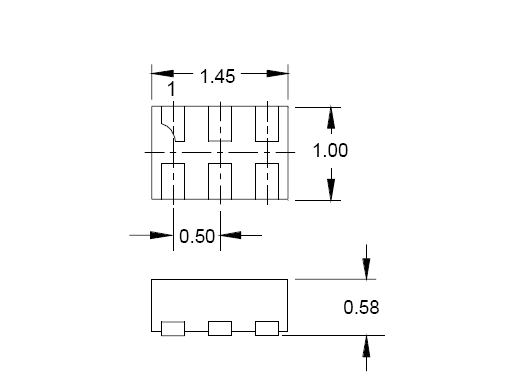

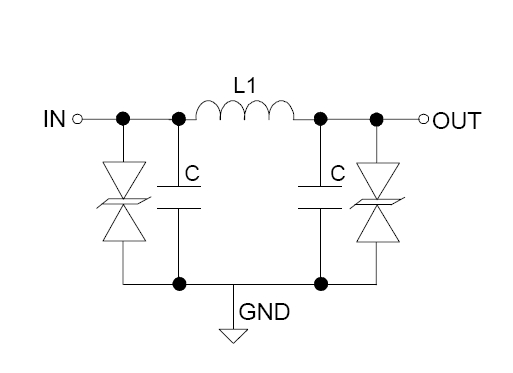

The EClamp® 2422N is a (C-L-C) low pass filter array with integrated TVS diodes. It is designed to suppress unwanted EMI-RFI signals and provide electrostatic discharge (ESD) protection in portable electronic equipment.
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD protection to IEC 61000-4-2 (ESD) Level 4, ±15kV (air), ±8kV (contact)
- TVS working voltage: 5V
- Inductor: 2nH (Typical)
- Capacitors: 100pF (Typical at VR = 0V)
- Protection and filtering for two lines
- Solid-state technology
- Lead-free, RoHS and WEEE compliant
- Cellular Handsets
- Speaker Ports in Portables
- Notebook Computers
- 3000 pcs. Tape & Reel
