Not Recommended for New Designs. Datasheet is for information purposes only. See EClamp®2357NQ as a recommended replacement.
- EMI/RFI filter with integrated ESD protection
- ESD protection to IEC 61000-4-2 (ESD) level 4, ± 15 kV (air), ± 8 kV (contact)
- Filter performance: > 30 dB attenuation at 1.8 GHz
- TVS working voltage: 5 V

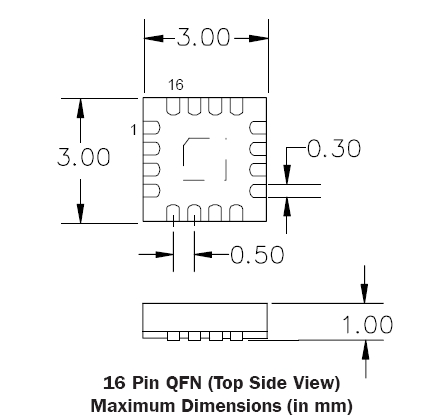

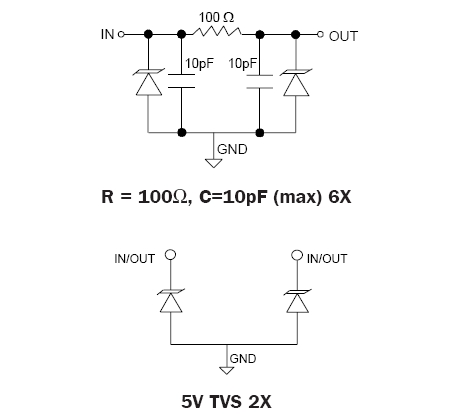

- Resistor: 100 ? ± 15%
- Component Capacitance: 10 pF (VR = 0 V)
- EMI & ESD protection for six lines
- Dedicated ESD protection for four lines
- Solid-state technology
- Touch screen display interfaces
- Secure digital (SD) memory card interfaces
- Multimedia card interfaces (MCI)
- Color LCD panel protection
- Cell phone handsets and accessories
- See recommended replacement EClamp2357NQ
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
