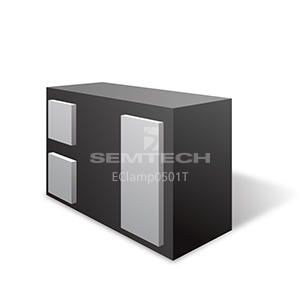

The EClamp® 0501T TVS diode is designed to protect sensitive electronics from damage or latch-up due to ESD. This state-of-the-art device utilizes solid-state silicon-avalanche technology for superior clamping performance and DC electrical characteristics. It has been optimized for protection of digital lines in cellular phones and other portable electronics.
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- Cable Discharge Event (CDE)
- Ultra-small package (1.0 x 0.6 x 0.4mm)
- Protects one data line
- TVS working voltage: 5V

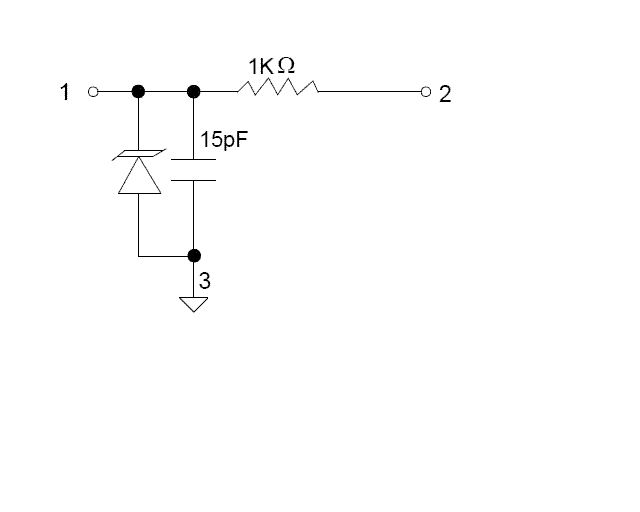

- Series Resistor: 1K Ohm
- Capacitance: 15pF (Maximum at VR = 0V)
- Low leakage current
- Solid-state silicon-avalanche technology
- Cellular Handsets & Accessories
- Personal Digital Assistants (PDAs)
- Notebooks & Handhelds
- Portable Instrumentation
- MP3 Players
- EClamp0501T.TCT 3000 pcs Tape and Reel, Pb-Free, Halogen Free, RoHS/WEEE Compliant
