SC4216
Not Recommended for New Designs
The SC4216 is a high performance positive voltage regulator designed for use in applications requiring very low Input voltage and very low dropout voltage at up to 3 amps.
Features
- Input Voltage as low as 1.45V
- 500mV dropout @ 3A

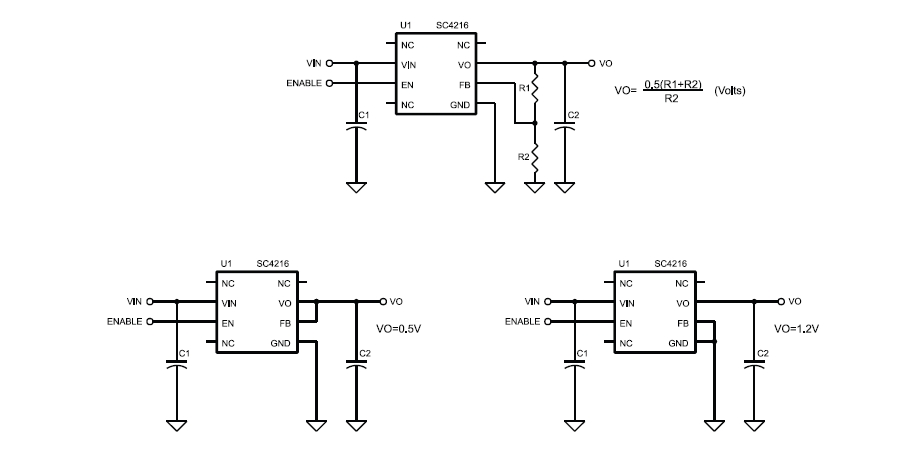

- Adjustable output from 0.5V to 3.8V
- Over current and over temperature protection
- Enable pin
- 10µA quiescent current in shutdown
- Full industrial temperature range
- Available in 8-Pin SOIC-EDP Lead-free package. Fully WEEE and RoHS compliant
- Telecom/Networking cards
- Motherboards/Peripheral cards
- Industrial applications
- Wireless infrastructure
- Set top boxes
- Medical equipment
- Notebook computers
- Battery powered systems
Applications
Packaging
- SOIC-8EDP
Order Codes
- SC4216STRT: Lead-free, RoHS and WEEE compliant, 2500 pcs. Tape & Reel
- SC4216EVB: SC4216 Evaluation Board
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC4216
Part Description
VERY LOW INPUT/VERY LOW DROPOUT 3 AMP LINEAR REGULATOR WITH ENABLE
# of leads
8
Package Type
SOICEP
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(223) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
Related Parts
SC4216STRT
