Semtech SC4215H
Very Low Input /Very Low Dropout 2 Amp Linear Regulator With Enable
The SC4215H is a high performance positive voltage regulator designed for use in applications requiring very low input voltage and very low dropout voltage at up to 2 amperes. It operates with a Vin as low as 1.4V, with output voltage programmable as low as 0.5V
Overview
Features
- Input Voltage as low as 1.4V
- 400mV dropout @ 2A
- Adjustable output from 0.5V
- Over current and over temperature protection
- Enable pin
- 10μA quiescent current in shutdown
- Full industrial temperature range
- Available in SOIC-8-EDP Lead-free package, fully
- WEEE and RoHS compliant
Applications
- Telecom/Networking cards
- Motherboards/Peripheral cards
- Industrial applications
- Wireless infrastructure
- Set top boxes
- Medical equipment
- Notebook computers
- Battery powered systems
Packaging
- Telecom/Networking cards
- Motherboards/Peripheral cards
- Industrial applications
- Wireless infrastructure
- Set top boxes
- Medical equipment
- Notebook computers
- Battery powered systems
Packaging
SOIC-8EDP
Order Codes
- SC4215HSTRT: Lead-Free, WEEE and RoHS Compliant, 2,500 pcs, Tape and Reel Only
- SC4215HEVB: SC4215H Evaluation Board
Diagrams and Specs

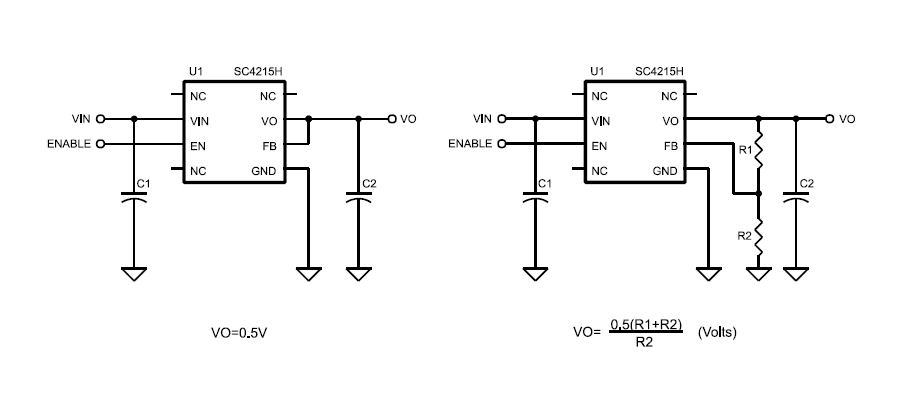

Block Diagram
Click diagram to enlarge
Datasheets and Resources
Restricted
