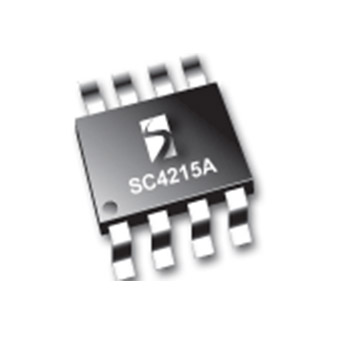

The SC4215A is a high performance positive voltage regulator designed for use in applications requiring very low input voltage and very low dropout voltage at up to 2 amp.
- Input Voltage as low as 1.4 V
- 500 mV dropout @ 2 A
- Adjustable output from 0.5 V to 3.8V
- Over-current and over-temperature protection
- Enable pin
- 10 µA quiescent current in shutdown
- Low reverse leakage (output to input)
- Full industrial temperature range
- Available SOIC-8EDP Lead-Free package, fully WEEE and RoHS compliant
- Telecom/Networking cards
- Motherboards/Peripheral cards
- Industrial applications
- Wireless infrastructure
- Set-top boxes
- Medical equipment
- Notebook computers
- Battery-powered systems
- SOIC-8 EDP
- SC4215ASTRT: Package Minimum Tape & Reel Only
- SC4215AEVB: SC4215A Evaluation Board
