SC803
Not Recommended for New Designs
Not recommended for new designs.
Features
- Fully integrated charger with FET pass transistor, reverse-blocking diode, sense resistor and thermal protection
- Complete voltage ranges of 4.1 V, 4.2 V, & adjustable
- Programmable precharge, fastcharge & termination current
- Battery voltage controlled to 1% accuracy
- Soft-start for step load and adaptor plug-in
- Up to 1.5 A continuous charge current
- Charge current monitor output from microcontroller or ADC Interface
- Input voltages range from 4.2 V to 7 V
- 0.1 µA battery drain current in shutdown and monitor modes
- Operates without a battery in regulated LDO mode
- Small 4 mm x 4 mm 16-lead MLP package
- Low thermal impedance of 50°C/watt
- Few external components
- Over-current protection in all charging modes
- Over-voltage protection with fault pin output
- All outputs able to drive LEDs and interface to host processor
- Remote Kelvin sensing at the battery terminal
- Small input & output filter capacitors
- Status output communicates charging and end of charge cycle
- Cellular phones
- PDAs
- Handheld meters
- Charging stations
- Handheld computers
- Digital cameras
- Programmable current source
Applications
Packaging

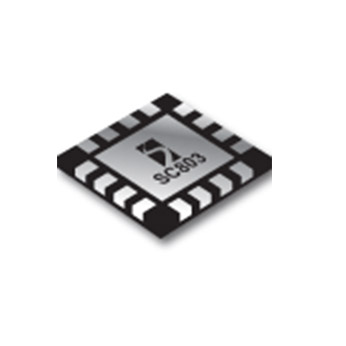

- MLPQ-16 (4X4 mm)
Order Codes
- SC803IMLTR: Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC803
Part Description
FULLY INTEGRATED HIGH CURRENT LITHIUM-ION BATTERY CHARGER SYSTEM
# of leads
16
Package Type
MLPQ
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
mySemtech
Explore a wealth of downloadable resources and datasheets to assist with prototyping and production.
Looking for documentation?
Login or register for mySemtech to gain access to restricted product documentation and to add documents to your Watch List for update alerts
