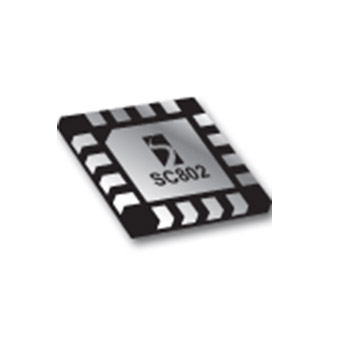

SC802
Not Recommended for New Designs
Not recommended for new designs.
Features
- Fully integrated charger with FET pass transistor, reverse-blocking diode, sense resistor, timer, and thermal protection
- Complete voltage ranges of 4.1 V, 4.2 V & adjustable
- Programmable precharge, fastcharge & termination current
- Battery voltage controlled to 1% accuracy
- Soft-start for glitch-free adaptor plug-in
- Up to 1 A continuous charge current
- Charge current monitor output for microcontroller or ADC interface
- Input voltage range from 4.2 V to 14 V
- 0.1 µA battery drain current in shutdown and monitor modes
- Operates without a battery in regulated LDO mode
- Small 4 mm x 4 mm 16-lead MLP package
- NTC thermistor sense input
- Adjustable 6-hour programmable charge timer
- Over current protection in all charging modes
- Over voltage protection
- Remote Kelvin sensing at the battery terminals
- ADC input control capable
- Status output communicates charging and end of charge cycle
- Charges Li-ion, Li-polymer, NiCd and NiMH Batteries
- Cellular phones
- PDAs
- Handheld meters
- Charging stations
- Handheld computers
- Digital cameras
- Programmable current source
Applications
Packaging
- MLPQ-16 (4X4 mm)
Order Codes
- SC802IMLTR: Package Minimum Tape & Reel Only
- SC802IMLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC802
Part Description
FULLY INTEGRATED HIGH CURRENT LITHIUM-ION BATTERY CHARGER
# of leads
16
Package Type
MLPQ
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
Related Parts
SC802IMLTRT
