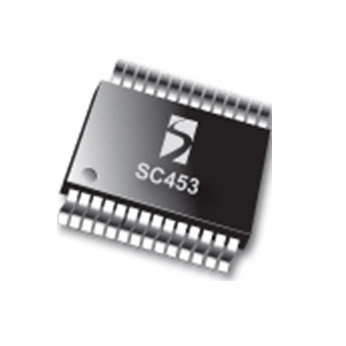

SC453
Not recommended for new designs.
Features
- High speed hysteretic controller
- Single phase operation
- Selectable analog or VID controlled sleep setting
- 6 bit VID programmable output
- Integrated drivers with soft high side turn-on
- Programmable soft-start
- Programmable boot voltage
- Programmable sleep voltage with sleep mode
- Under-voltage lock out on VCCA
- Over-voltage protection on CORE
- Current limit protection on CORE
- Thermal protection
- Power good flag with blanking during VCORE changes
- Automatic power save at light load
- TSSOP-28 package
- Low Power Notebook and Laptop Computers
- Embedded Applications
Applications
Packaging
- TSSOP-28
Order Codes
- SC453TSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
| Part # | Country | Qty | Buy | Distributor |
|---|
Search Pb(Lead)-Free/RoHS-Green Search
Base Part Number (1)
SC453
Part Description
PORTABLE, VID PROGRAMMED SINGLE PHASE POWER SUPPLY CONTROLLER
