Semtech SC2453
High-Performance Quad-Output Switching Regulator
Not Recommended for New Designs. Datasheet is for information purposes only.
The SC2453 is a high performance controller for multi-output converters that can be configured for a wide variety of applications. The SC2453 utilizes PWM synchronous buck topologies where efficiency is most important. It also provides dedicated programmable positive and negative linear regulators using external transistors. Each of the three positive outputs is adjustable down to 0.5V. The two PWM switchers are synchronized 180‚° out of phase reducing input ripple, allowing for fewer input capacitors. Power up sequencing prevents converter latch-up.Overview
Features
- Two synchronized converters for low noise
- Power-up sequencing to prevent latch-up
- Out-of-phase operation for low input ripple
- Over-current protection
- Wide input range, 4.5 V to 30 V
- Programmable frequency up to 700 kHz
- Two synchronous bucks for high efficiency at high current
- One dedicated programmable positive linear regulator and one dedicated programmable negative linear regulator
- Output voltage as low as 0.5 V
- Small TSSOP-28 package
Applications
- DSL applications with multiple input voltage requirements
- Mixed-signal applications requiring positive and negative voltages
- Cable modem power management
- Base station power management
Packaging

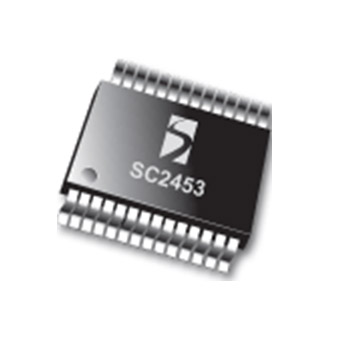

TSSOP-28
Order Codes
- SC2453ITSTR: Package Minimum Tape & Reel Only
- SC2453ITSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Diagrams and Specs
Block Diagram
Click diagram to enlarge
