SC195

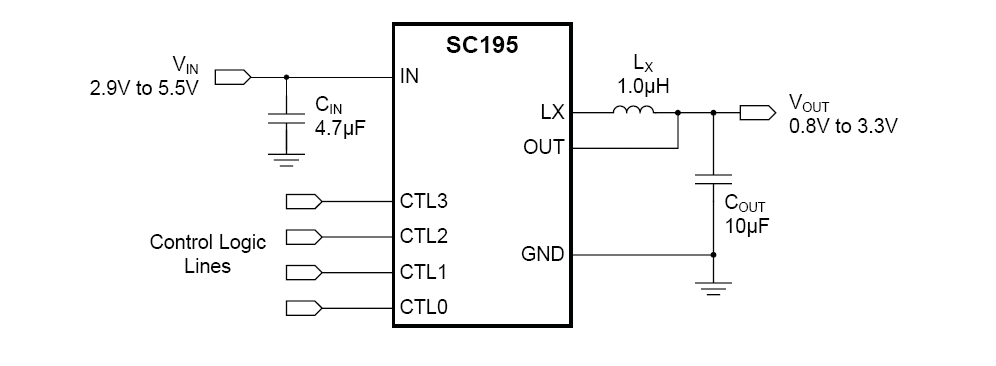

The SC195 is a high efficiency, 500mA step down regulator designed to operate with an input voltage range of 2.9V to 5.5 V. The input voltage range makes it ideal for battery operated applications with space limitations.
Features
- Input Voltage — 2.9V to 5.5V
- Output Voltage — 0.8V to 3.3V
- Output current capability — 500mA
- Efficiency up to 94%
- 15 Programmable output voltages
- High light-load efficiency via automatic PSAVE mode
- Fast transient response
- Temperature range — -40 to +85°C
- Oscillator frequency — 3.5MHz
- 100% duty cycle capability
- Quiescent current — 38μA typ
- Shutdown Current — 0.1μA typ
- Internal soft-start
- Over-voltage protection
- Current limit and short circuit protection
- Over-temperature protection
- Under-voltage lockout
- Floating control pin protection
- MLPQ-UT8 1.5 x 1.5 x 0.6 (mm) package
- Pb free, Halogen free, and RoHS/WEEE compliant
- Smart phones and cellular phones
- MP3/Personal media players
- Personal navigation devices
- Digital cameras
- Single Li-ion cell or 3 NiMH/NiCd cell devices
- Devices with 3.3V or 5V internal power rails
Applications
Packaging
- MLPQ-UT8
Order Codes
- SC195ULTRT: Lead Free, Halogen Free, RoHS/WEEE Complaint, 3000 pcs, Tape and Reel Only
- SC195EVB: SC195 Evaluation Board
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
| Part # | Country | Qty | Buy | Distributor |
|---|
Search Pb(Lead)-Free/RoHS-Green Search
Base Part Number (1)
SC195
Part Description
3.5MHZ, 500MA SYNCHRONOUS STEP DOWN DC-DC REGULATOR
# of leads
8
Package Type
WLCSP
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
SnAg
MSL Rating
1
REACH SVH C(223) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
1 Exp. 9/20/2015
-
2(a) Exp. 12/31/2012
-
2(b)(3) Exp. 12/31/2011
-
3 Exp. 12/31/2011
-
4 Exp. 12/31/2011
-
5 Exp. TBD
-
6(a)* Exp. TBD
-
6(b)* Exp. TBD
-
6(c)* Exp. TBD
-
7(a)* Exp. TBD
-
7(b)* Exp. TBD
-
7(c)-III Exp. 1/1/2013
-
8(b) Exp. TBD
-
9 Exp. TBD
-
11(a) Exp. 9/24/2010
-
12 Exp. 9/24/2010
-
13(a)* Exp. TBD
-
13(b) Exp. TBD
-
14 Exp. 1/1/2011
-
15* Exp. TBD
-
Device Mass (mg)
REFER TO IPC 1752-2
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
N/A
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
N/A
60°C/90%RH 4000 Hrs, Whisker Test
N/A
Automotive
AEC Q100 Qualified (14)
N/A
Grade (11)
N/A
AEC Q101 (22)
N/A
PPAP Ready (15)
N/A
IMDS Posted (16)
N/A
Declarations and Reports
IPC-1752-2
Base Part Number (1)
SC195
Part Description
3.5MHz, 500mA SYNCHRONOUS STEP DOWN DC-DC CONVERTER
# of leads
8
Package Type
MLPQ-UT
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(223) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
1 Exp. 9/20/2015
-
2(a) Exp. 12/31/2012
-
2(b)(3) Exp. 12/31/2011
-
3 Exp. 12/31/2011
-
4 Exp. 12/31/2011
-
5 Exp. TBD
-
6(a)* Exp. TBD
-
6(b)* Exp. TBD
-
6(c)* Exp. TBD
-
7(a)* Exp. TBD
-
7(b)* Exp. TBD
-
7(c)-III Exp. 1/1/2013
-
8(b) Exp. TBD
-
9 Exp. TBD
-
11(a) Exp. 9/24/2010
-
12 Exp. 9/24/2010
-
13(a)* Exp. TBD
-
13(b) Exp. TBD
-
14 Exp. 1/1/2011
-
15* Exp. TBD
-
Device Mass (mg)
REFER TO IPC 1752-2
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
N/A
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
N/A
60°C/90%RH 4000 Hrs, Whisker Test
N/A
Automotive
AEC Q100 Qualified (14)
N/A
Grade (11)
N/A
AEC Q101 (22)
N/A
PPAP Ready (15)
N/A
IMDS Posted (16)
N/A
Declarations and Reports
IPC-1752-2
Base Part Number (1)
SC195
Part Description
3.5MHz, 500mA SYNCHRONOUS STEP DOWN DC-DC CONVERTER
# of leads
8
Package Type
MLPQ-UT
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(223) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
1 Exp. 9/20/2015
-
2(a) Exp. 12/31/2012
-
2(b)(3) Exp. 12/31/2011
-
3 Exp. 12/31/2011
-
4 Exp. 12/31/2011
-
5 Exp. TBD
-
6(a)* Exp. TBD
-
6(b)* Exp. TBD
-
6(c)* Exp. TBD
-
7(a)* Exp. TBD
-
7(b)* Exp. TBD
-
7(c)-III Exp. 1/1/2013
-
8(b) Exp. TBD
-
9 Exp. TBD
-
11(a) Exp. 9/24/2010
-
12 Exp. 9/24/2010
-
13(a)* Exp. TBD
-
13(b) Exp. TBD
-
14 Exp. 1/1/2011
-
15* Exp. TBD
-
Device Mass (mg)
REFER TO IPC 1752-2
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
N/A
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
N/A
60°C/90%RH 4000 Hrs, Whisker Test
N/A
Automotive
AEC Q100 Qualified (14)
N/A
Grade (11)
N/A
AEC Q101 (22)
N/A
PPAP Ready (15)
N/A
IMDS Posted (16)
N/A
Declarations and Reports
IPC-1752-2
