GREEN HOUSE is a Japanese electronics manufacturer delivering safe, secure, high-quality products across multiple categories. Holding triple international certifications (ISO14001, ISO27001, ISO9001), the company demonstrates commitment to environmental management, information security, and quality assurance.

Leveraging expertise in IoT and wireless communications, GREEN HOUSE develops products and solutions based on proprietary LoRa communication modules. The company's LoRaWAN-compatible WBGT (Wet Bulb Globe Temperature) monitoring system represents a breakthrough in heat stroke prevention technology, setting a new benchmark for health and safety monitoring in high-temperature environments.

Increasing Heat Stroke Accidents Due to Recent Extreme Heat

Rising heat stroke incidents created demand for remote monitoring solutions using high-precision WBGT meters across schools, construction sites, and sports facilities. Traditional WBGT meters posed significant challenges:

• Manual Operation Requirements: Local display only with manual recording, reading, and notifications made continuous monitoring labor-intensive and inefficient.
• Power Source Limitations: Required USB, DC12V battery, or AC100V power supply, making long-term operation difficult in remote or outdoor locations without reliable grid power.
• Limited Remote Monitoring: Lack of wireless connectivity prevented real-time monitoring and automated alerts, delaying response to dangerous heat conditions.
• High Operational Costs: Manual meter reading and maintenance required regular site visits and personnel deployment.

THE SPECIFIC NEED

A remote monitoring solution that could accurately measure and track WBGT with real-time data, automated alerts, extended battery life, and cost-effective scalability across multiple deployment sites.

LoRaWAN-Compatible Heat Stroke (WBGT) Monitoring System

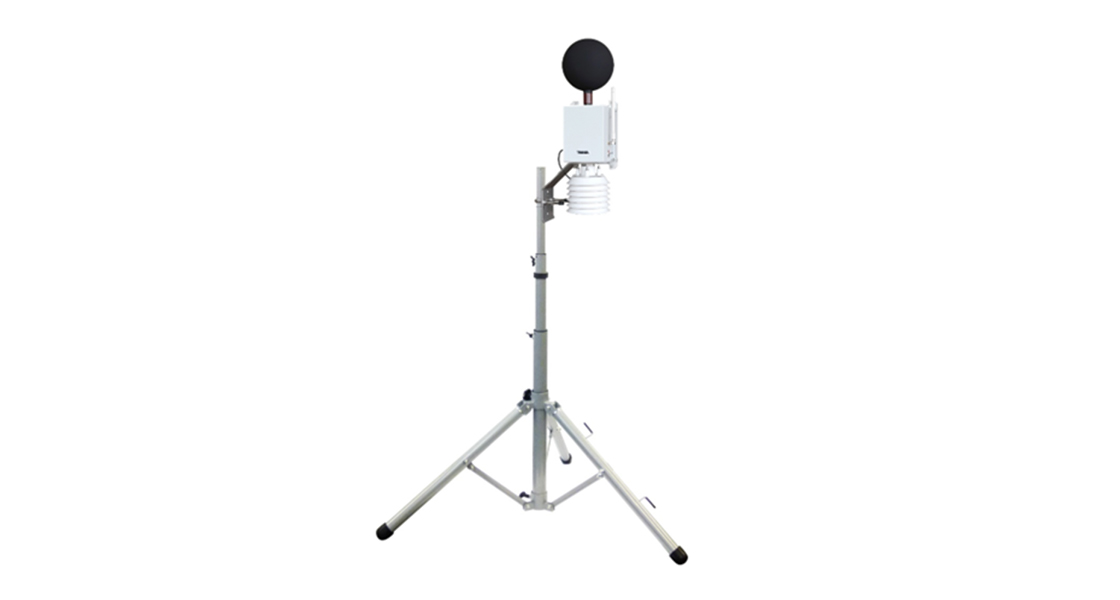

GREEN HOUSE combined its LoRaWAN communication technology (GHWM92LRA module) with Tsuruga Electric's JIS standard-compliant WBGT meter (TC-793-3-LW-X-57) and a partner's IoT platform to create a comprehensive remote monitoring solution.

The solution leverages LoRaWAN technology to provide:

• Long-Distance Communication: Wide-area coverage with ranges of 1.5km (standard antennas) to 4-5km (high-gain antennas), ideal for large-site monitoring.
• Low Power Consumption: Continuous operation for more than 5 months with 8 size C dry cell batteries, perfect for remote WBGT applications.
• Cost-Effective Scalability: Multiple sensors connect through a single gateway at fixed costs, regardless of sensor count. One contract per site with no additional costs for additional sensors.

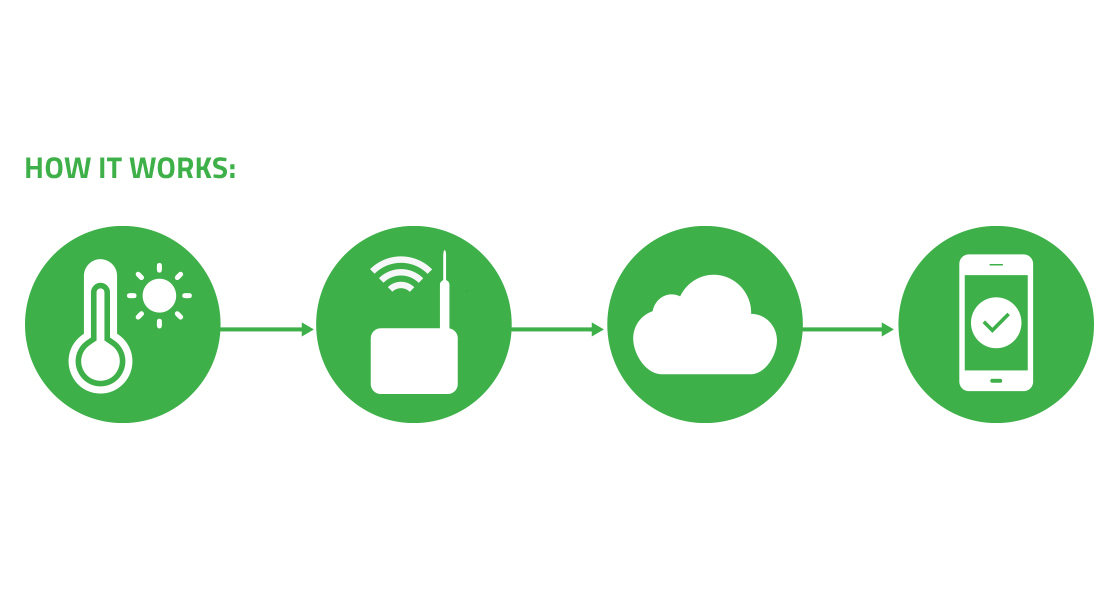

• Remote Monitoring: Wireless data transmission from field sensors to cloud systems via LTE, supporting real-time monitoring, email alerts, CSV exports, and system integration.

KEY ADVANTAGES

• Flexible data transmission intervals (1-20 minutes) configurable via internal switch
• Long-distance, low-power wireless communication covers large areas with minimal infrastructure
• Access data from anywhere via internet connection
• Integration capability with existing systems
• Solar-powered outdoor gateway kits enable deployment without grid power

Utilizing Semtech's LoRa® technology has delivered significant benefits:

• Extended Battery Life: LoRa/LoRaWAN communication enables continuous operation for more than 5 months with 8 size C dry cell batteries, significantly reducing maintenance costs and site visits.
• Remote Accessibility: Cloud-based data recording and threshold-based email notifications enable remote access from anywhere, eliminating manual readings and on-site monitoring.
• Comprehensive Coverage: Communication ranges of 1.5km to 4-5km enable monitoring across large facilities including mega solar power plants, school campuses, and construction sites.
• High Precision Monitoring: JIS B 7922 CLASS1.5 compliance with ±1.5ºC WBGT and ±0.5ºC ambient temperature precision, measuring heat stroke risk parameters (WBGT, ambient/black globe/wet bulb temperature, humidity).
• Flexible Deployment: Configurable transmission intervals (1-20 minutes), multiple power options (AC100V, DC12V, AA batteries), IP23 weather resistance, and 0-50ºC operating temperatures.
• Cost-Effective Scalability: One contract per site with unlimited sensors. Scale deployment without increased costs.
• Cloud Integration: Seamless 4G/LTE data transmission enables real-time browser monitoring, email alerts, CSV exports, and system integration through PUSH/PULL configurations.
• Autonomous Operation: Solar-powered gateway kits with 100W panels enable installation anywhere regardless of infrastructure availability.
• Improved Safety Management: Real-time monitoring and automated alerts enable proactive heat stroke prevention, protecting workers, students, and athletes.

DEPLOYMENT SITES

• Mega solar power plants - Several locations in Japan
• Local public facilities - Including schools
• Sports facilities - Including athletic grounds
• Construction sites

SYSTEM CHARACTERISTICS

• Frequency band: 920MHz~928MHz (Japan domestic standard)
• LoRaWAN channels: Up to 37 channels maximum (when DWELL ON)
• One gateway per site: One contract is required per location
• Multiple sensors supported: Scalable deployment without increased costs
