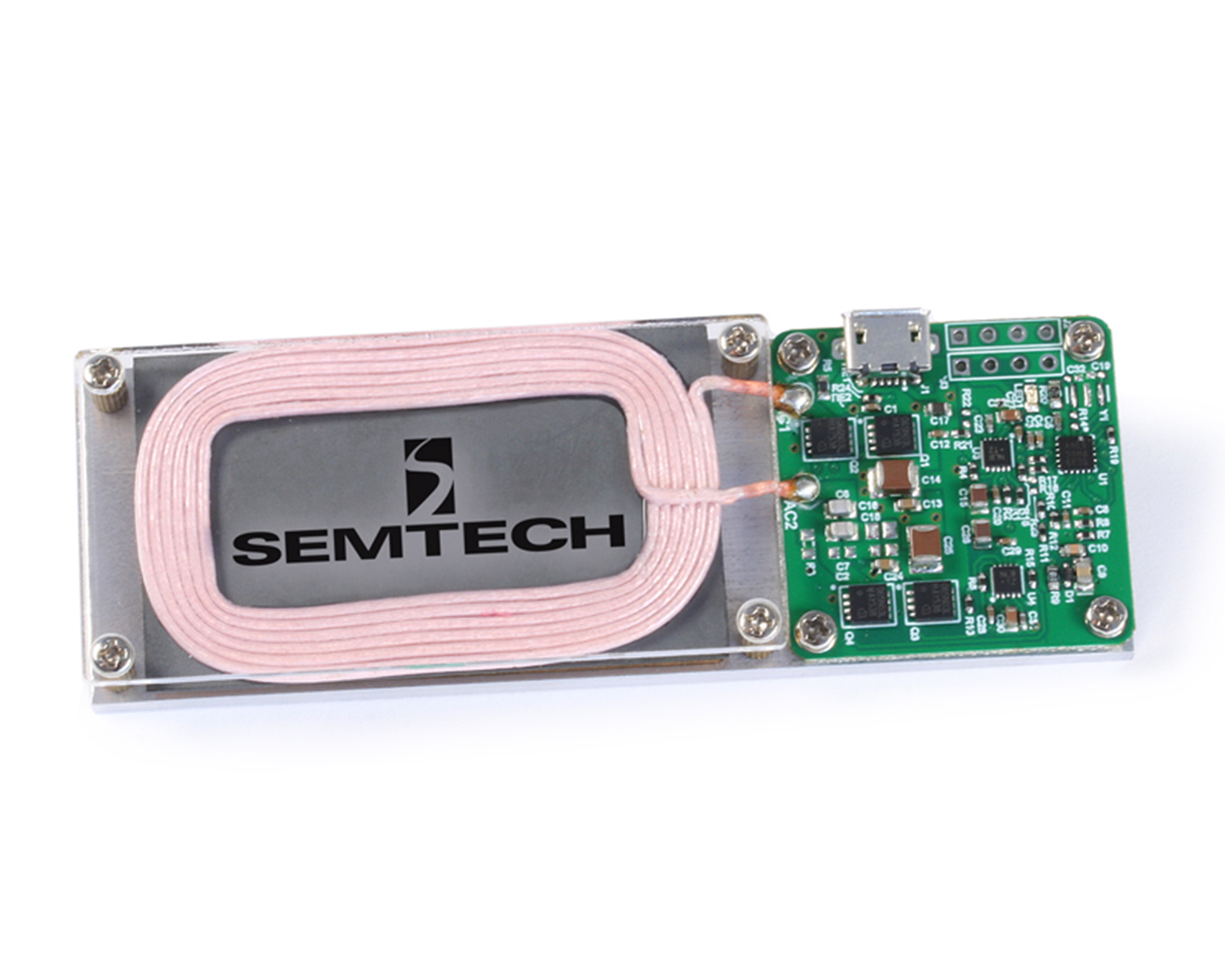

Semtech TSWITX-5V-2RX-EVM
LinkCharge® LP Multi-device Transmitter
The Semtech TSWITX-5V-2RX-EVM is an evaluation platform for the test and experimentation of a wireless charging transmitter based on the Semtech TS80002 Wireless Power Transmitter Controller and TS61005 Dual N-Channel MOSFET Driver. This evaluation module, in conjunction with its compatible receiver, the TSWIRX-5V2-EVM, provides a complete system.
Overview
Features
Semtech IC Contents
- TS80002-QFNR Controller
- TS61005
- Low power multi-device charging wireless power transmitter
- High switching frequency at 1MHz for low thermal dissipation into metal objects
- 5V input power supply
- Automatic timer with shut-off
- Foreign Object Detection (FOD)
- Pairs with two LinkCharge LP receivers simultaneously
TSWIRX-5V2-EVM
Delivers 1 watt of total output power at the receivers
Freedom of positioning X, Y, and Z of the receivers
Applications
- Wearables, smart jewelry, trackers, clothing
- Electric tooth brushes
- LED fixtures, such as power and charging tea lights
- Industrial applications
