EcoBrite LED Drivers

Semtech SC620

Current Sink LED Driver for 8 BL + I2C Interface

Not recommended for new designs.

The SC620 is a multi-purpose LED driver with eight identical, independently controlled current sinks. Each current sink can drive an LED by connecting the LED’s anode to the system power supply and the cathode to the current sink input pin. Any combination of outputs can be enabled or disabled for optimal design flexibility.

Overview

Features

  • Eight identical current drivers with independent control
  • Wide current setting range - 31.25μA to 25mA
  • 5% current matching, 7% accuracy
  • I2C interface for microprocessor control
  • I2C slave address 1110 000x
  • Less than 1μA quiescent current in shutdown
  • Low dropout voltage: ≤ 150mV
  • Over-temperature protection
  • MLPQ-UT-16 package (3mm x 3mm)
  • Ultra-thin 0.6mm maximum package height
  • Fully WEEE and RoHS compliant

Applications

  • LCD backlighting LED driver
  • Multicolor and RGB LED driver
  • General purpose current sink array
  • General purpose digital output (open-drain) expander
  • Auto-focus voice-coil driver

Packaging

  • MLPQ-UT-16 (3X3 mm)

Order Codes

  • SC620ULTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only

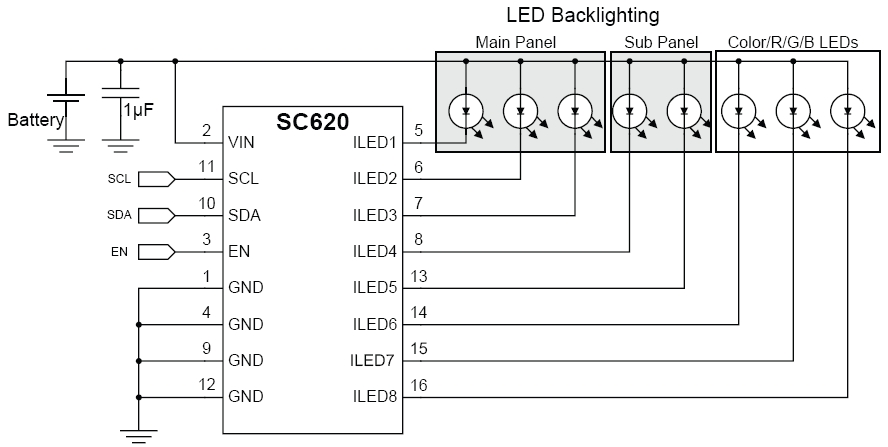

Block Diagram

Click diagram to enlarge
