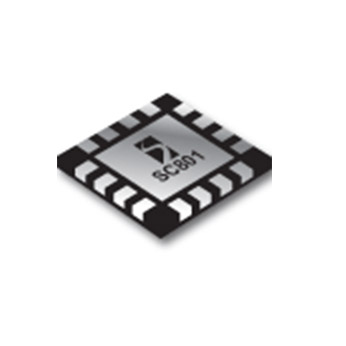

SC801
Not Recommended for New Designs
Not recommended for new designs.
Obsolete - this device is no longer available.
Features
- Fully integrated charger with
- FET pass transistor
- Reverse blocking diode
- Sense resistor
- Thermal protection
- Input voltage range 4.2 V to 14 V
- Complete voltage ranges
- 4.1 V
- 4.2 V
- Adjustable
- Programmable pre-charge, fast-charge, and termination current
- Battery voltage controlled to 1% accuracy
- Soft start for step load and adaptor plug-in
- Up to 1.5 A continuous charge current
- Charge-current monitor output from microcontroller or ADC interface
- 0.1 µA battery drain current in shutdown and monitor modes
- Operates without a battery in regulated LDO mode
- Low thermal impedance of 50°C/watt
- Few external components
- Over-current protection in all charging modes
- Over-voltage protection
- All output can drive LEDs and interface to host processor
- Remote Kelvin sensing at the battery terminal
- Small input & output filter capacitors
- Status output communicates charging and end-of-charge cycle
- Charges Li-ion, Li-polymer, NiCd and NiMH batteries
- Now available in lead-free packaging
- Small 4 mm x 4 mm 16-lead MLP package
- Cellular phones
- PDAs
- Handheld meters
- Charging stations
- Handheld computers
- Digital cameras
Applications
Packaging
- MLPQ-16 (4X4 mm)
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC801
Part Description
HIGH CURRENT LITHIUM-ION BATTERY CHARGER SYSTEM
# of leads
16
Package Type
MLPQ
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
