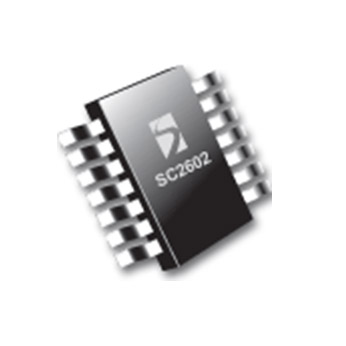

SC2602
Not Recommended for New Designs
Not recommended for new designs.
Features
- Synchronous operation for high efficiency (95%)
- RDS(ON) current sensing
- On-chip power-good and OVP functions
- Small size with minimal external components
- Soft start
- Enable function
- SO-14 package
- Microprocessor core supply
- Low-cost synchronous applications
- Voltage regulator modules (VRM)
- DDR termination supplies
- Networking power supplies
- Sequenced power supplies
Applications
Packaging
- SOIC-14
Order Codes
- SC2602ASTR: Package Minimum Tape & Reel Only
- SC2602STR: Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC2602
Part Description
SYNCHRONOUS VOLTAGE MODE CONTROLLER FOR DISTRIBUTED POWER SUPPLY
# of leads
14
Package Type
SOIC
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
Related Parts
SC2602STRT
